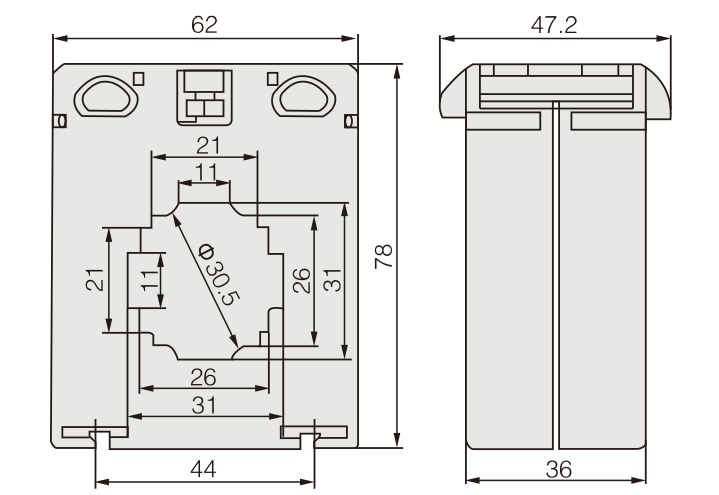

OB-62/30


Specifications

1.primary current: 30-3000A,secondary current:1A、5A

2.Highest System Voltage: 720V

3.Rated Frequency: 50 or 60Hz

4.Withstand Voltage: 3kV for 1min

5.Environment Temerature: -25℃~45℃

6.Instrument Security Factor:FS≦5

7.Standard:IEC60044-1 GB1208

Type

Ratio(A)

Burden(VA)

Turns through core

Class:3.0

Class:1.0

Class:0.5

Class:0.2

OB-63/30

40/5

1.5

1

50/5

2.5

1.5

1

60/5

2.5

1.5

1

75/5

1.5

1

80/5

2.5

1

100/5

3

1

125/5

3

1

*If it carrys 100% rated primary current for long term, please indicate this point when to book the product.
